Y-Splitter

Y-Splitters

Single-phase 2-way
16amp | 32amp

Y-Splitters

Single-phase 2-way
16amp | 32amp

Extend your potential on temporary power management in totally safe ways. Easy to connect, easy to use.

  • Splitting made electrically safe,
    as it should always be

    Splitting made
    electrically safe,
    as it should always be

    Quality materials and uncompromised design
    for safe 2-way cable splitters.

    Quality materials and uncompromised design for safe 2-way cable splitters.

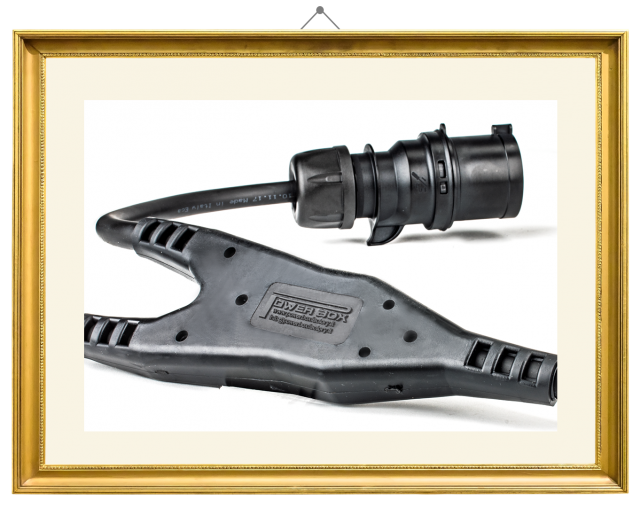

    PowerBox 2-way current multiplier is made in compliance with the electrical regulations, with the cables sized for the maximum current value even on the split output cables to grant full electrical safety. You can finally ditch non-compliant splitters made with two small section cables coming out of a plug. Our Y-splitters are made with H07RN-F cables with a junction area coated with a special hard rubber compound. Double insulation for IP67 waterproof protection. Safe and resistant over time. A fully reliable and safe multiplier for temporary use, with no shortcomings. 16amp and 32amp versions available, for 2.5 and 6 mm˛ cable sections, respectively.

  • So many possibilities

    So many possibilities

    So many possibilities

    Choose the features you really need

    Choose the features you really need

    The standard model has 3 x 30cm cables. Customized cable lengths and branding are available on request. Customers can also choose their preferred type of plugs and sockets, as well as their placement on cable ends as Standard and Reverse models are available. The Standard layout features the male plug on one end, with the 2 female sockets next to each other on the other side. The Reverse layout has one of the females on one side, with the male plug and the other female socket on the other side, next to each other. So many possibilities for your temporary power, as easy as that.

  • 16amp Standard

    16amp Standard

    Single phase 2-way

    Single phase 2-way

    Max. voltage 220/240V 50/60Hz, Max. current 16amp, Max. power 3.500W, Y-splitter body is IP67, Total IP value depending on plug and connectors models.

    16amp Standard
  • Available versions

    Available versions

    Default configurations are listed in the table. It is possible to customize cables lenghts, plug and connectors type and imprint your own logo.


    p/nPlug (1)Connectors (2)IP
    2D1S2P161 CEE-17 16amp 3p 6h 230V IP44 black2 x CEE-17 16amp 3p 6h 230V IP44 blackIP44
    2D1S2P16S1 CEE-17 16amp 3p 6h 230V IP67 black2 x CEE-17 16amp 3p 6h 230V IP67 blackIP67
    2D1S2P16SC1 German / France (Schuko dual earthing system) 16amp 3p 230V IP44 black2 x German (Schuko) 16amp 3p 230V IP44 blackIP44
    2D1S2P16FR1 German / France (Schuko dual earthing system) 16amp 3p 230V IP44 black2 x France (NFC) 16amp 3p 230V IP44 blackIP44
    2D1S2P16PT1 powerCON TRUE1 TOP 16amp 3p 230V IP65 black2 x powerCON TRUE1 TOP 16amp 3p 230V IP65 blackIP65



  • 16amp Reverse

    16amp Reverse

    Single phase 2-way

    Single phase 2-way

    Max. voltage 220/240V 50/60Hz, Max. current 16amp, Max. power 3.500W, Y-splitter body is IP67, Total IP value depending on plug and connectors models.

    16amp Reverse
  • Available versions

    Available versions

    Default configurations are listed in the table. It is possible to customize cables lenghts, plug and connectors type and imprint your own logo.

    p/nPlug (1)Connectors (2)IP
    2D1S2P16R1 CEE-17 16amp 3p 6h 230V IP44 black2 x 2 x CEE-17 16amp 3p 6h 230V IP44 blackIP44
    2D1S2P16RS1 CEE-17 16amp 3p 6h 230V IP67 black2 x CEE-17 16amp 3p 6h 230V IP67 blackIP67
    2D1S2P16SCR1 German / France (Schuko dual earthing system) 16amp 3p 230V IP44 black2 x German (Schuko) 16amp 3p 230V IP44 blackIP44
    2D1S2P16FRR1 German / France (Schuko dual earthing system) 16amp 3p 230V IP44 black2 x France (NFC) 16amp 3p 230V IP44 blackIP44
    2D1S2P16PTR1 powerCON TRUE1 TOP 16amp 3p 230V IP65 black2 x powerCON TRUE1 TOP 16amp 3p 230V IP65 blackIP65

  • 32amp Standard

    32amp Standard

    Single phase 2-way

    Single phase 2-way

    Max. voltage 220/240V 50/60Hz, Max. current 32amp, Max. power 7.000W, Y-splitter body is IP67, Total IP value depending on plug and connectors models.

    32amp Standard
  • Available versions

    Available versions

    Default configurations are listed in the table. It is possible to customize cables lenghts, plug and connectors type and imprint your own logo.


    p/nPlug (1)Connectors (2)IP
    2D1S2P321 CEE-17 32amp 3p 6h 230V IP44 black2 x CEE-17 32amp 3p 6h 230V IP44 blackIP44
    2D1S2P32S1 CEE-17 32amp 3p 6h 230V IP67 black2 x CEE-17 32amp 3p 6h 230V IP67 blackIP67



  • 32amp Reverse

    32amp Reverse

    Single phase 2-way

    Single phase 2-way

    Max. voltage 220/240V 50/60Hz, Max. current 32amp, Max. power 7.000W, Y-splitter body is IP67, Total IP value depending on plug and connectors models.

    32amp Reverse
  • Available versions

    Available versions

    Default configurations are listed in the table. It is possible to customize cables lenghts, plug and connectors type and imprint your own logo.


    p/nPlug (1)Connectors (2)IP
    2D1S2P32R1 CEE-17 32amp 3p 6h 230V IP44 black2 x CEE-17 32amp 3p 6h 230V IP44 blackIP44
    2D1S2P32RS1 CEE-17 32amp 3p 6h 230V IP67 black2 x CEE-17 32amp 3p 6h 230V IP67 blackIP67



  • 32amp to 16amp

    32amp to 16amp

    32amp single-phase 2-way 16amp

    32amp single-phase 2-way 16amp

    Max. voltage 220/240V 50/60Hz, Max. current 32amp, Max. power 7.000W, Y-splitter body is IP67, Total IP value depending on plug and connectors models.

    32amp to 16amp
  • Available versions

    Available versions

    Default configurations are listed in the table. It is possible to customize cables lenghts and imprint your own logo.

    IMPORTANT:
     Current multiplier intended for specialized technical personnel and for temporary use only. To be used only under the conditions described in the product instructions.


    p/nPlug (1)Connectors (2)IP
    2D1S322P161 CEE-17 32amp 3p 6h 230V IP44 black2 x CEE-17 16amp 3p 6h 230V IP44 blackIP44
    2D1S322P16S1 CEE-17 32amp 3p 6h 230V IP67 black2 x CEE-17 16amp 3p 6h 230V IP67 blackIP67

  • A design tailored for your needs

    A design tailored
    for your needs

    A design tailored
    for your needs

    We'll build your bespoke distribution box according to your requirements. Choose model, dimensions, input, outputs, meters and safety switches. Let's shape your ideal layout together!

    We'll build your bespoke distribution box according to your requirements. Choose model, dimensions, input, outputs, meters and safety switches. Let's shape your ideal layout together!
