PowerBox MiniBrick 16amp splitter rubber boxes

MiniBrick Line

16 Amp versions

MiniBrick Line

16 Amp versions

Made to be on stage! Portable MiniBrick multiplier and adapter boxes, available in many different I/O configurations, discover all the options.

  • Multiply your power

    Multiply your power

    Light and reliable splitter boxes
    for every input/output combination

    Light and reliable splitter boxes
    for every input/output combination

    The PowerBox MiniBricks are professional multi-socket boxes ideally suitable for any application throughout the entertainment industry. The containers are molded in a special black hard rubber compound. On the versions with external power cables, cable glands with cable-saving spiral are provided to prevent breakage of the conductors due to bending and preserve the integrity of the cables over time. Input and outputs have their specific “voltage on” control lights.

  • Technical data

    Technical data

    MiniBrick Multipliers | Adapters

    MiniBrick Multipliers | Adapters

  • rated voltage230V 1pH+N+E 50Hz
    max. power3.500W
    max. current16amp (to be connected to a power supply having overload and short circuit protection)
    multipliers / adaptersfor Italian, French, German, Swiss and English electrical standards for industry and entertainment
    box made of hard rubberRAL 9011 black color, dimensions 80 x 75 x 300 mm. (L x W x H, excluding the components installed on the box)
    red indicatorfor voltage ON

  • includes 2m cablewhen supplied with inline input plug
    cable glandson the models with cable, the cable glands are supplied with anti-kink protection
    schuko plugwith double earthing system (German and French system)
    data platelabel with the data plate is affixed to the box and includes a progressive serial number
    CE marked and compliantwith EC 2006/95/EC Low Voltage Directive
  • PowerBox MiniBrick line 16amp rubber power splitters

  • External box features

    External box features



    Glow-wire-resistance 960°C according to EN 60695-2-11      Mechanical impacts IK10 according to EN 50102
    Excellent resistance to impactsHigh mechanical strength
    Great electrical insulating qualitiesUV and ozone resistance
    Self-extinguishing and hardy flammable

  • Dimensions

    Dimensions

    Dimensions excluding the components installed on the box


    VersionHeightWidthDepth
    MiniBrick80 mm300 mm75 mm

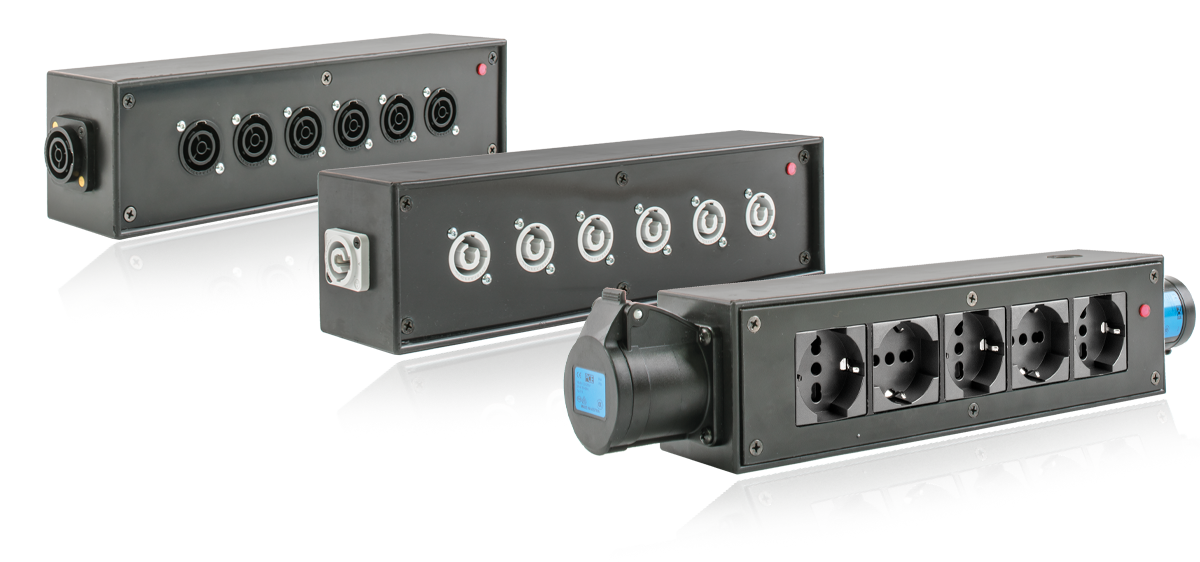

  • Discover our popular solutions

    Discover our popular solutions

    Discover
    our popular solutions

    Or contact us to discuss a custom layout together

    Or contact us to discuss a
    custom layout together

    We know every job has its peculiar requirements and a few default products cannot fulfill everybody's needs. That's why we made customization the cornerstone of our work. Here we present some of our most successful MiniBrick layouts for you to choose or take inspiration from, in order to design your perfect configuration.

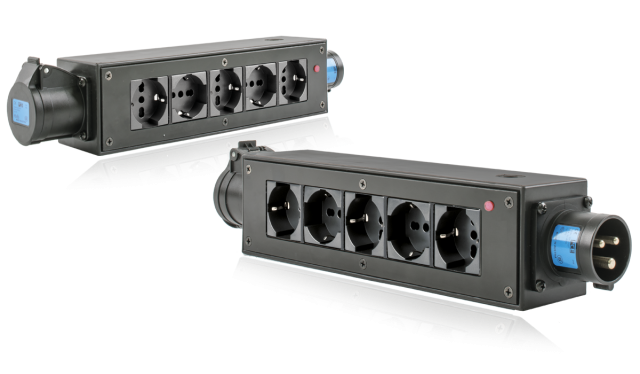

  • Models with 5 Multistandard

    Models with 5 Multistandard

    (Italian and German)
    16amp Sockets IP2X

    (Italian and German)
    16amp Sockets IP2X

    PowerBox MiniBrick 16amp - OUT 5x italian/german 3p IP2 sockets


    p/nINOUTLOOP
    SBF165LSMPLZ-LCEE-17 16amp 3p 6h IP44 appliance inlet5 italian/german system 10/16amp 3p IP2X socketsCEE-17 16amp 3p 6h IP44 socket
    SBF165LSMP0Z-LCEE-17 16amp 3p 6h IP44 appliance inlet5 italian/german system 10/16amp 3p IP2X socketsNO LOOP
    SBF165LSMVLZ-LCEE-17 16amp 3p 6h IP44 plug5 italian/german system 10/16amp 3p IP2X socketsCEE-17 16amp 3p 6h IP44 socket
    SBF165LSMV0Z-LCEE-17 16amp 3p 6h IP44 appliance plug5 italian/german system 10/16amp 3p IP2X socketsNO LOOP
    SBF165LSPCLZ-LpowerCON 20amp power-in blue5 italian/german system 10/16amp 3p IP2X socketspowerCON 20amp power-out grey
    SBF165LSPC0Z-LpowerCON 20amp power-in blue5 italian/german system 10/16amp 3p IP2X socketsNO LOOP
    SBF165LSPTLZ-LpowerCON True1 16amp appliance inlet5 italian/german system 10/16amp 3p IP2X socketspowerCON True1 16amp appliance inlet
    SBF165LSPT0Z-LpowerCON True1 16amp appliance inlet5 italian/german system 10/16amp 3p IP2X socketsNO LOOP
    SBF165LSSCLZ-LSCHUKO 16amp plug (dual earthing system)5 italian/german system 10/16amp 3p IP2X socketsSCHUKO 16amp 3p IP54 socket
    SBF165LSSC0Z-LSCHUKO 16amp plug (dual earthing system)5 italian/german system 10/16amp 3p IP2X socketsNO LOOP

  • 6 powerCON True1

    6 powerCON True1

    16amp appliance outlet

    16amp appliance outlet

    PowerBox MiniBrick 16amp - OUT 6x powerCON True1 16amp appliance outlets

    p/nINOUTLOOP
    SBF166PTMPLZCEE-17 16amp 3p 6h IP44 appliance inlet6 powerCON True1 16amp appliance outletCEE-17 16amp 3p 6h IP44 socket
    SBF166PTMP0ZCEE-17 16amp 3p 6h IP44 appliance inlet6 powerCON True1 16amp appliance outletNO LOOP
    SBF166PTMVLZCEE-17 16amp 3p 6h IP44 plug6 powerCON True1 16amp appliance outletCEE-17 16amp 3p 6h IP44 socket
    SBF166PTMV0ZCEE-17 16amp 3p 6h IP44 plug6 powerCON True1 16amp appliance outletNO LOOP
    SBF166PTPTLZpowerCON True1 16amp appliance inlet6 powerCON True1 16amp appliance outletpowerCON True1 16amp appliance outlet
    SBF166PTPT0ZpowerCON True1 16amp appliance inlet6 powerCON True1 16amp appliance outletNO LOOP
    SBF166PTPVLZpowerCON True1 16amp male cable6 powerCON True1 16amp appliance outletpowerCON True1 16amp appliance outlet
    SBF166PTPV0ZpowerCON True1 16amp male cable6 powerCON True1 16amp appliance outletNO LOOP
    SBF166PTSCLZSCHUKO 16amp plug (dual earthing system)6 powerCON True1 16amp appliance outletSCHUKO 16amp 3p IP54 socket
    SBF166PTSC0ZSCHUKO 16amp plug (dual earthing system)6 powerCON True1 16amp appliance outletNO LOOP

  • 6 PowerCON

    6 PowerCON

    20amp Power-out grey

    20amp Power-out grey

    PowerBox MiniBrick 16amp - OUT 6x powerCON 20amp power-out grey

    p/nINOUTLOOP
    SBF166PCMPLZCEE-17 16amp 3p 6h IP44 appliance inlet6 powerCON 20amp power-out greyCEE-17 16amp 3p 6h IP44 socket
    SBF166PCMP0ZCEE-17 16amp 3p 6h IP44 appliance inlet6 powerCON 20amp power-out greyNO LOOP
    SBF166PCMVLZCEE-17 16amp 3p 6h IP44 plug6 powerCON 20amp power-out greyCEE-17 16amp 3p 6h IP44 socket
    SBF166PCMV0ZCEE-17 16amp 3p 6h IP44 plug6 powerCON 20amp power-out greyNO LOOP
    SBF166PCPCLZpowerCON 20amp power-in blue (Max16amp)6 powerCON 20amp power-out greypowerCON 20amp power-out grey
    SBF166PCPC0ZpowerCON 20amp power-in blue (Max16amp)6 powerCON 20amp power-out greyNO LOOP
    SBF166PCSCLZSCHUKO 16amp plug (dual earthing system)6 powerCON 20amp power-out greySCHUKO 16amp 3p IP54 socket
    SBF166PCSC0ZSCHUKO 16amp plug (dual earthing system)6 powerCON 20amp power-out greyNO LOOP

  • 4 German standard (schuko)

    4 German standard (schuko)

    16amp Sockets IP54

    16amp Sockets IP54

    PowerBox MiniBrick 16amp - OUT 4x SCHUKO 16amp 3p IP54 sockets

    p/nINOUTLOOP
    SBF164SCMPLZCEE-17 16amp 3p 6h IP44 appliance inlet4 SCHUKO 16amp 3p IP54 socketsCEE-17 16amp 3p 6h IP44 socket
    SBF164SCMP0ZCEE-17 16amp 3p 6h IP44 appliance inlet4 SCHUKO 16amp 3p IP54 socketsNO LOOP
    SBF164SCMVLZCEE-17 16amp 3p 6h IP44 plug4 SCHUKO 16amp 3p IP54 socketsCEE-17 16amp 3p 6h IP44 socket
    SBF164SCMV0ZCEE-17 16amp 3p 6h IP44 plug4 SCHUKO 16amp 3p IP54 socketsNO LOOP
    SBF164SCPCLZpowerCON 20amp power-in blue4 SCHUKO 16amp 3p IP54 socketspowerCON 20amp power-out grey
    SBF164SCPC0ZpowerCON 20amp power-in blue4 SCHUKO 16amp 3p IP54 socketsNO LOOP
    SBF164SCPTLZpowerCON True1 16amp appliance inlet4 SCHUKO 16amp 3p IP54 socketspowerCON True1 16amp appliance outlet
    SBF164SCPT0ZpowerCON True1 16amp appliance inlet4 SCHUKO 16amp 3p IP54 socketsNO LOOP
    SBF164SCSCLZSCHUKO 16amp plug (dual earthing system)4 SCHUKO 16amp 3p IP54 socketsSCHUKO 16amp 3p IP54 socket
    SBF164SCSC0ZSCHUKO 16amp plug (dual earthing system)4 SCHUKO 16amp 3p IP54 socketsNO LOOP

  • 4 British standard

    4 British standard

    13amp Sockets IP54

    13amp Sockets IP54

    PowerBox MiniBrick 16amp - OUT 4x british 13amp 3p IP54 sockets

    p/nINOUTLOOP
    SBF164BSMPLZC-FORM 16amp 3p 6h IP44 appliance inlet4 british standard 13amp 3p IP54 socketsC-FORM 16amp 3p 6h IP44 socket
    SBF164BSMP0ZC-FORM 16amp 3p 6h IP44 appliance inlet4 british standard 13amp 3p IP54 socketsNO LOOP
    SBF164BSMVLZC-FORM 16amp 3p 6h IP44 plug4 british standard 13amp 3p IP54 socketsC-FORM 16amp 3p 6h IP44 socket
    SBF164BSMV0ZC-FORM 16amp 3p 6h IP44 plug4 british standard 13amp 3p IP54 socketsNO LOOP
    SBF164BSPCLZpowerCON 20amp power-in blue4 british standard 13amp 3p IP54 socketspowerCON 20amp power-out grey
    SBF164BSPC0ZpowerCON 20amp power-in blue4 british standard 13amp 3p IP54 socketsNO LOOP
    SBF164BSPTLZpowerCON True1 16amp appliance inlet4 british standard 13amp 3p IP54 socketspowerCON True1 16amp appliance outlet
    SBF164BSPT0ZpowerCON True1 16amp appliance inlet4 british standard 13amp 3p IP54 socketsNO LOOP
    SBF164BS00LZcable end free (max 13amp)4 british standard 13amp 3p IP54 socketsbritish standard 13amp 3p IP54 socket
    SBF164BS000LZcable end free (max 13amp)4 british standard 13amp 3p IP54 socketsNO LOOP


  • 4 Swiss standard

    4 Swiss standard

    T23 16amp Sockets IP54

    T23 16amp Sockets IP54

    PowerBox MiniBrick 16amp - OUT 4x swiss 16amp 3p IP54 socket

    p/nINOUTLOOP
    SBF164SSMPLZCEE-17 16amp 3p 6h IP44 appliance inlet4 swiss standard 16amp 3p IP54 socketCEE-17 16amp 3p 6h IP44 socket
    SBF164SSMP0ZCEE-17 16amp 3p 6h IP44 appliance inlet4 swiss standard 16amp 3p IP54 socketsNO LOOP
    SBF164SSMVLZCEE-17 16amp 3p 6h IP44 plug4 swiss standard 16amp 3p IP54 socketsCEE-17 16amp 3p 6h IP44 socket
    SBF164SSMV0ZCEE-17 16amp 3p 6h IP44 plug4 swiss standard 16amp 3p IP54 socketsNO LOOP
    SBF164SSPCLZpowerCON 20amp power-in blue4 swiss standard 16amp 3p IP54 socketspowerCON 20amp power-out grey
    SBF164SSPC0ZpowerCON 20amp power-in blue4 swiss standard 16amp 3p IP54 socketsNO LOOP
    SBF164SSPTLZpowerCON True1 16amp appliance inlet4 swiss standard 16amp 3p IP54 socketspowerCON True1 16amp appliance outlet
    SBF164SSPT0ZpowerCON True1 16amp appliance inlet4 swiss standard 16amp 3p IP54 socketsNO LOOP
    SBF164SS00LZcable end free (max 16amp)4 swiss standard 16amp 3p IP54 socketsswiss standard 16amp 3p IP54 socket
    SBF164SS000Zcable end free (max 16amp)4 swiss standard 16amp 3p IP54 socketsNO LOOP

  • 4 French standard (NFC)

    4 French standard (NFC)

    16amp Sockets IP54

    16amp Sockets IP54

    PowerBox MiniBrick 16amp - OUT 4x french 16amp 3p IP54 sockets

    p/nINOUTLOOP
    SBF164FSMPLZCEE-17 16amp 3p 6h IP44 appliance inlet4 french standard 16amp 3p IP54 socketsCEE-17 16amp 3p 6h IP44 socket
    SBF164FSMP0ZCEE-17 16amp 3p 6h IP44 appliance inlet4 french standard 16amp 3p IP54 socketsNO LOOP
    SBF164FSMVLZCEE-17 16amp 3p 6h IP44 plug4 french standard 16amp 3p IP54 socketsCEE-17 16amp 3p 6h IP44 socket
    SBF164FSMV0ZCEE-17 16amp 3p 6h IP44 plug4 french standard 16amp 3p IP54 socketsNO LOOP
    SBF164FSPCLZpowerCON 20amp power-in blue4 french standard 16amp 3p IP54 socketspowerCON 20amp power-out grey
    SBF164FSPC0ZpowerCON 20amp power-in blue4 french standard 16amp 3p IP54 socketsNO LOOP
    SBF164FSPTLZpowerCON True1 16amp appliance inlet4 french standard 16amp 3p IP54 socketspowerCON True1 16amp appliance outlet
    SBF164FSPT0ZpowerCON True1 16amp appliance inlet4 french standard 16amp 3p IP54 socketsNO LOOP
    SBF164FS00LZcable end free (max 16amp)4 french standard 16amp 3p IP54 socketsswiss standard 16amp 3p IP54 socket
    SBF164FS000Zcable end free (max 16amp)4 french standard 16amp 3p IP54 socketsNO LOOP

  • Models with 4 CEE-17

    Models with 4 CEE-17

    16amp Sockets IP44

    16amp Sockets IP44

    PowerBox MiniBrick 16amp - OUT 4x CEE-17 16amp 3p 6h IP44 sockets

    p/nINOUTLOOP
    SBF164M1MPLZCEE-17 16amp 3p 6h IP44 appliance inlet4 CEE-17 16amp 3p 6h IP44 socketsCEE-17 16amp 3p 6h IP44 socket
    SBF164M1MP0ZCEE-17 16amp 3p 6h IP44 appliance inlet4 CEE-17 16amp 3p 6h IP44 socketsNO LOOP
    SBF164M1MVLZCEE-17 16amp 3p 6h IP44 plug4 CEE-17 16amp 3p 6h IP44 socketsCEE-17 16amp 3p 6h IP44 socket
    SBF164M1MV0ZCEE-17 16amp 3p 6h IP44 plug4 CEE-17 16amp 3p 6h IP44 socketsNO LOOP
  • A design tailored for your needs

    A design tailored
    for your needs

    A design tailored
    for your needs

    We'll build your bespoke distribution box according to your requirements. Choose model, dimensions, input, outputs, meters and safety switches. Let's shape your ideal layout together!

    We'll build your bespoke distribution box according to your requirements. Choose model, dimensions, input, outputs, meters and safety switches. Let's shape your ideal layout together!
