S2W 480amp

S2W PowerSyntax

Multiplier | Adaptor | Phase inverter
480amp versions

S2W PowerSyntax

Multiplier | Adaptor | Phase inverter
480amp versions

For PowerSyntax single pole connectors. Available with EU, UK, AUS and USA color coding.

  • The best accessories
    for the best connectors

    The best accessories
    for the best connectors

    Standard and Reverse layouts available

    Standard and Reverse layouts available

    PowerSyntax is a family of highest quality Powerlock-compatible single pole connectors and accessories made in Italy by Syntax. In our distribution boxes we use PowerSyntax and other Syntax products in order to provide our clients with the most performing and reliable components. If you need a multiplier/adaptor/phase inverter for your single pole connections, the PowerSyntax S2W series is the solution you were looking for.

  • S2W 480amp

    S2W 480amp

    S2W 480amp

    PowerSyntax multiplier

    PowerSyntax multiplier

    S2W with 1 drain | 2 source Syntax PowerSyntax 480amp connectors. Available with EU, UK, AUS and USA color coding. Standard and reverse versions are available. The reverse version differs from the standard only for the position where the input connector is assembled (on the reverse version, the input is inline with one of the outputs).

  • Example p/n - EU color coding

    Example p/n - EU color coding

    1 input malecolor2 output femalecolorp/n
    Line 1Line 1S2WX111000S
    Line 2Line 2S2WX222000S
    Line 3Line 3S2WX333000S
    NeutralNeutralS2WXNNN000S
    GroundGroundS2WXGGG000S

  • Notice:
    - for the reverse version replace final S by R in the p/n.
    - for the version with safety lacing add -L at the end of the p/n.
    - IP67 or IP53 protection caps available on request.

  • S2W 480amp

    S2W 480amp

    S2W 480amp

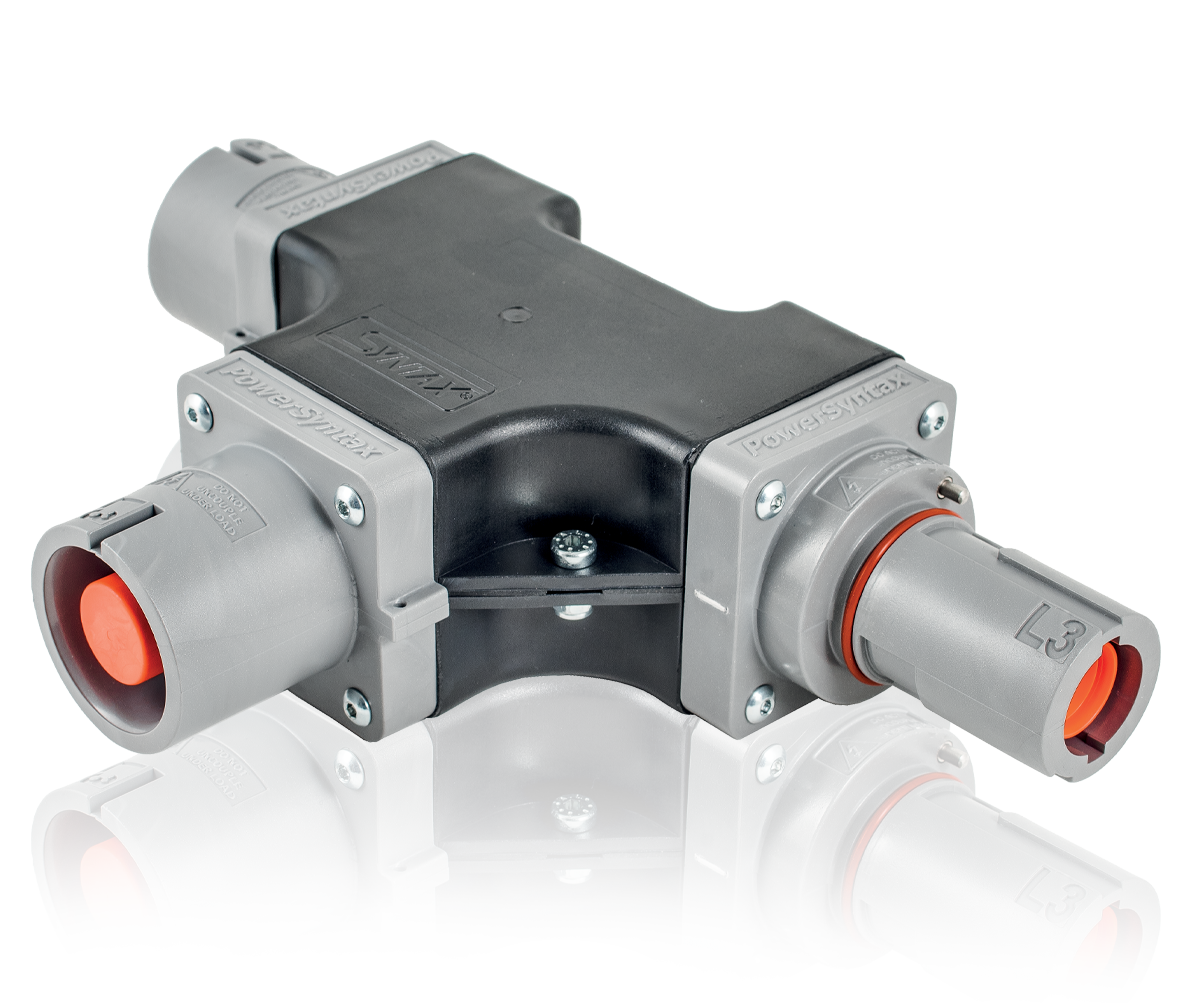

    PowerSyntax Phase Inverter/Adaptor/Multiplier

    PowerSyntax Phase Inverter/Adaptor/Multiplier

    The PowerSyntax Phase Inverters/Adaptors (up to 480A have been designed to solve two specific problems: 1. reverse the rotation direction in 3-phase motors, etc. by changing the phase sequence (L1-L2-L3) between the power source and the connected devices; 2. provide those who use only one model of phase conductor (L1, L2 or L3) to operate L1-L2-L3+Neutral systems with an interface between standard three-phase power generators/distros and their devices.

  • The former is a common demand in industrial applications. The latter is a specific need of entertainment and cinema industries.Standard and reverse versions are available (standard versions in the photo). The reverse version differs from the standard only for the position where the input connector is assembled (on the reverse version, the INPUT is inline with one of the outputs).

  • Available versions and p/n

    Available versions and p/n


    1 input malecolor2 output femalecolorp/n
    Line 1Line 3S2WX133000S
    Line 2Line 3S2WX233000S
    Line 3Line 2S2WX322000S
    Line 1Line 2S2WX122000S
    Line 2Line 1S2WX211000S
    Line 3Line 1S2WX311000S

  • Notice:
    - for the reverse version replace final S by R in the p/n.
    - for the version with safety lacing add -L at the end of the p/n.
    - IP67 or IP53 protection caps available on request.

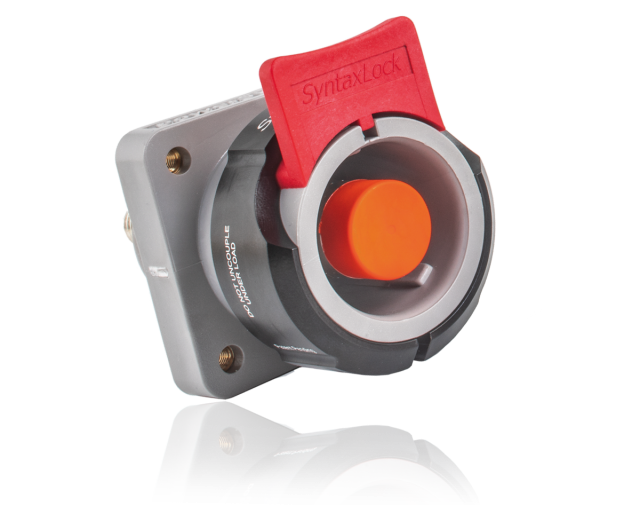

  • SyntaxLock

    SyntaxLock

    Patent pending

    Patent pending

    SyntaxLock

    Suitable for all PowerSyntax connectors. Can be fitted or removed at any time. A simple, universal accessory. Quick and easy to install.

  • Protection caps IP67

    Protection caps IP67

    For IP67 waterproof protection

    For IP67 waterproof protection

    Protection caps IP67

    The PowerSyntax IP67 caps ensure complete waterproof protection and IP53 caps are a fast, easy way to protect your connectors.
