32 to 63 Amp versions

Turtle Line

32 to 63 Amp versions

Putting so much power in so little space. We call it Turtle for its shape and for its solid and resistant shell. But don't be fooled by its name: it's all but slow.


  • Did you know that a Turtle
    could be this powerful?

    Did you know that a Turtle could be this powerful?

    So compact and sturdy you can take it everywhere

    So compact and sturdy
    you can take it everywhere

    PowerBox Turtle series, available in 2 sizes, Turtle and Maxi Turtle, which differ only in overall dimensions. They are molded in a special compound of hard butyl insulating rubber in black color, elastic, resistant to shocks and mechanical stresses deriving from normal use (transport, continuous handling, etc.). Stackable, transportable using the handle on the upper side.


  • External box features

    External box features



  • Glow-wire-resistance 960C according to EN 60695-2-11      Mechanical impacts IK10 according to EN 50102
    Excellent resistance to impactsHigh mechanical strength
    Great electrical insulating qualitiesUV and ozone resistance
    Self-extinguishing and hardy flammable

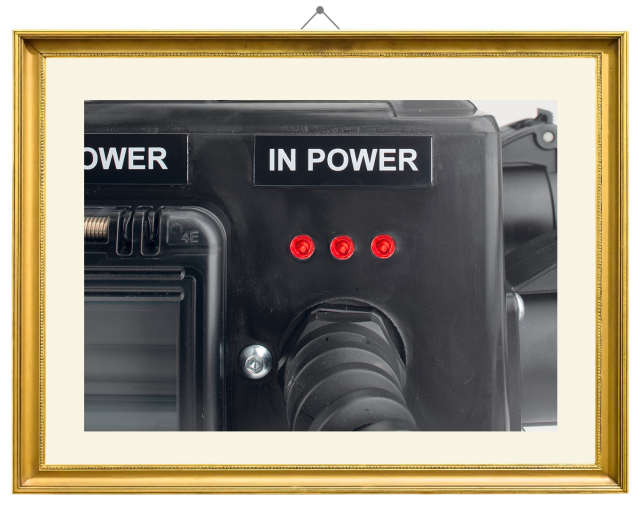

  • Red lights signal
    input voltage presence

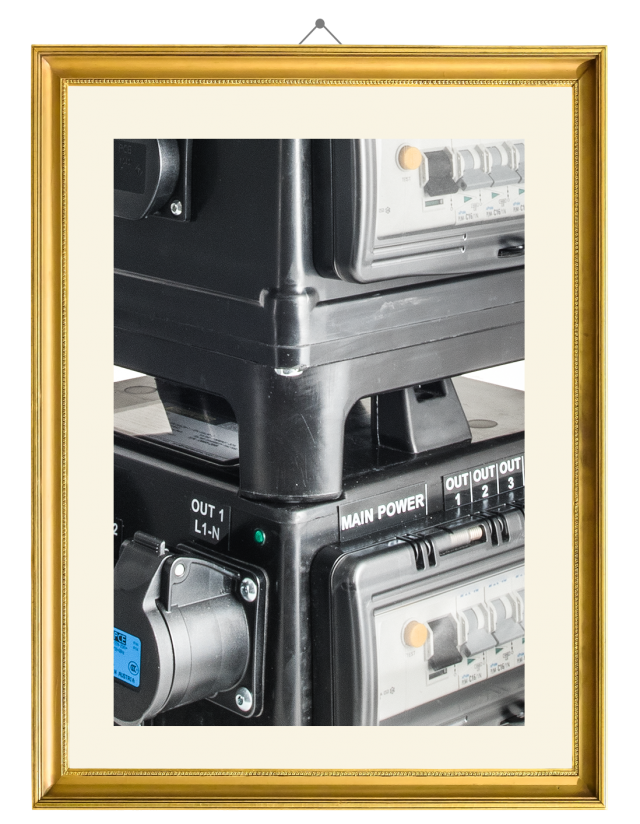

  • Turtles are shaped to be
    easily stackable

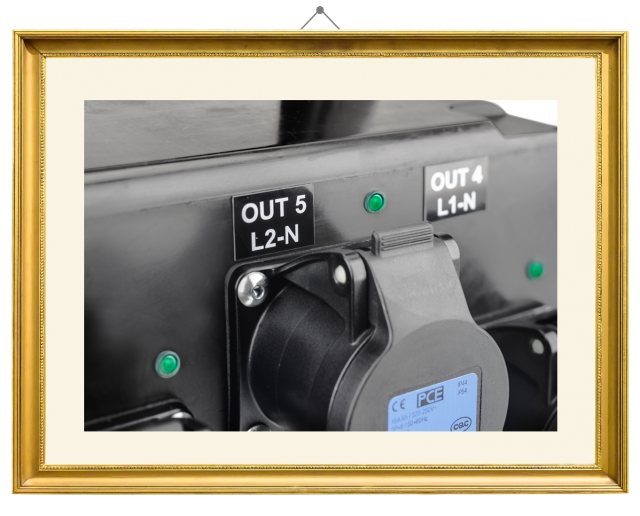

  • Green lights signal
    outputs voltage presence

  • Discover our popular solutions

    Discover our popular solutions

    Discover
    our popular solutions

    Or contact us to discuss a custom layout together

    Or contact us to discuss a
    custom layout together

    We know every job has its peculiar requirements and a few default products cannot fulfill everybody's needs. That's why we made customization the cornerstone of our work. Here we present some of our most successful Turtle line layouts for you to choose or take inspiration from, in order to design your perfect configuration.

  • 32 Amp

    32 Amp

    Turtle Line

    Turtle Line

    Part Number: PBF32P6M1SRT



  • Configuration1 CEE-17 32amp 5p 6h 400V IP44 (IN)
    1 CEE-17 32amp 5p 6h 400V IP44 (LOOP)
    6 x SCHUKO 16amp 3p 230V IP54 (OUT)
    1 RCCB 40amp 4p IΔn 0,03A AC type
    6 x MCB 16amp 1pN-C (6 x SCHUKO 16amp)

    Technical dataIEC 61439-1 & 2, Ue=400V 3pH+N+E, fn=50Hz, InA=32amp, Icc=4.500A, IP=44, RDF=50%

  • 32 Amp

    32 Amp

    Turtle Line

    Turtle Line

    Part Number: PBF32P6M1TC



    Configuration1 CEE-17 32amp 5p 6h 400V IP44 plug with 2m. cable type H07RN-F 5G6mm (IN)
    6 x CEE-17 16amp 3p 6h 230V IP44 (OUT)
    1 RCCB 40amp 4p IΔn 0,03A AC type
    6 x MCB 16amp 1pN-C (6 x CEE-17 16amp single-phase)

    Technical dataIEC 61439-1 & 2, Ue=400V 3pH+N+E, fn=50Hz,InA=32amp, Icc=4.500A, IP=44, RDF=100%

  • 63amp

    63amp

    Turtle Line

    Turtle Line

    Part Number: PBF63P2P2T

  • Configuration1 CEE-17 63amp 5p 6h 400V IP67 (IN)
    2 x CEE-17 32amp 5p 6h 400V IP44 (OUT)
    1 RCCB 63amp 4p IΔn 0,03A AC type
    2 x MCB 32amp 4p-C (2 x CEE-17 32amp three-phase)

    Nominal dataIEC 61439-1 & 2, Ue=400V 3pH+N+E, fn=50Hz, InA=63amp, Icc=6.000A, IP=44, RDF=98%


  • Overall dimensions

    Overall dimensions

  • Turtle

    Turtle

    Turtle

    Standard version

    Standard version

    Dimensions in mm

  • Turtle

    Turtle

    Turtle

    Standard version

    Standard version

    Dimensions in mm

  • Maxi Turtle

    Maxi Turtle

    Maxi Turtle

    Available on request

    Available on request

    Dimensions in mm

  • Maxi Turtle

    Maxi Turtle

    Maxi Turtle

    Available on request

    Available on request

    Dimensions in mm

  • A design tailored for your needs

    A design tailored
    for your needs

    A design tailored
    for your needs

    We'll build your bespoke distribution box according to your requirements. Choose model, dimensions, input, outputs, meters and safety switches. Let's shape your ideal layout together!
