Soca Splitters
and Cables
The best components and designs
for your PowerBox Soca items
Soca Splitters
and Cables
The best components and designs for your PowerBox Soca items
Extension cables, Spider splitters, Break-out & Splitter boxes
-
You deserve
flawless connectionsYou deserve
flawless connectionsSyntax SSX and cables for superior Soca wiring solutions
Syntax SSX and cables for superior
Soca wiring solutionsSocapex is a wiring standard well known in the entertainment industry primarily for the 19 pins known as Soca connectors, used in film, television and stage lighting. Thanks to our Syntax SSX 19-pin connectors and cables we are able to provide wiring of the highest quality with enduring performances over time. Extension cables, break-out boxes and cables (male SSX connector with 6 sockets), break-ins (female SSX connector with 6 plugs) and S2W 2 way splitter boxes, all with 19-pin SSX connectors for uncompromised quality and great durability.
-
Break-Out Soca
Break-Out Soca
CONFIGURATION
Spider splitter made Syntax® SSX 19-pin series male connector (black color heavy duty locking ring, silver contacts) 6 Syntax® cables 3G2,5mm˛ / 6 CEE-17 16amp 3p 6h 230V IP44 black color connectors.SP19M6FBL010-SC 6 x 1m cables SP19M6FBL015-SC 6 x 1,5m cables SP19M6FBL020-SC 6 x 2m cables -
Customizations
Customizations
Bespoke versions are available, with:
• different fixed lengths, or offset lengths on each channel;
• H07RN-F cables;
• SSX 19p connectors with gold plated contacts, or with colored rings (metal or rubber coated);
• German or French cable plugs/connectors, or powerCON, or powerCON True1. -
Break-In Soca
Break-In Soca
CONFIGURATION
Spider splitter made Syntax® SSX 19-pin series female connector (silver contacts) 6 Syntax® cables 3G2,5mm˛ / 6 CEE-17 16amp 3p 6h 230V IP44 black color plugs.SP6M19FBL010-SC 6 x 1m cables SP6M19FBL015-SC 6 x 1,5m cables SP6M19FBL020-SC 6 x 2m cables -
Customizations
Customizations
Bespoke versions are available, with:
• different fixed lengths, or offset lengths on each channel;
• H07RN-F cables;
• SSX 19p connectors with gold plated contacts, or with colored rings (metal or rubber coated);
• German or French cable plugs/connectors, or powerCON, or powerCON True1. -
Extension Cable Soca
Extension Cable Soca
CONFIGURATION
Extension cable made with Syntax® cable 18x2,5mm˛ and Syntax® SSX 19-pin series male / female connectors (black color heavy duty locking ring, silver contacts).EC19PS25L05-SC 5m cable length EC19PS25L10-SC 10m cable length EC19PS25L15-SC 15m cable length EC19PS25L20-SC 20m cable length EC19PS25L25-SC 25m cable length EC19PS25L30-SC 30m cable length -
Customizations
Customizations
Bespoke versions are available with:
• different cable lengths;
• SSX 19p connectors with gold plated contacts, or with colored rings (metal or rubber coated);
• Syntax® 19G2,5mm˛ pur cable (polyurethane jacket). -
-

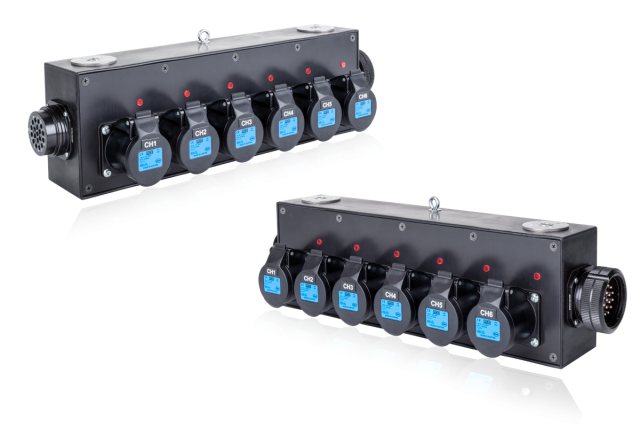

Break-Out Box Soca
Break-Out Box Soca
Made on black rubber molded box (insulating, watertight, GWT compliant, dimensions W400 x D130 x H75mm). Syntax SSX-19 pin male (IN) and female (LOOP) connectors with possibility to mount IP67 caps. OUT sockets have voltage presence lights. Two M10 connections for mounting half couplers or clamps (not supplied). Safety cable mounting ring (safety cable not supplied).
-
-
-
p/n IN LOOP OUT SP19M6FBQ-2M1R Syntax SSX 19pin M - 6 CEE-17 6amp 3p 6h 230V IP44 SP19M6FBRQ-2M1R Syntax SSX 19pin M Syntax SSX 19pin F 6 CEE-17 16amp 3p 6h 230V IP44 SP19M6FSQ-2M1R Syntax SSX 19pin M - 6 German (Schuko) 16amp 3p 230V IP44 SP19M6FSRQ-2M1R Syntax SSX 19pin M Syntax SSX 19pin F 6 German (Schuko) 16amp 3p 230V IP44 SP19M6FFQ-2M1R Syntax SSX 19pin M - 6 France (NFC) 16amp 3p 230V IP44 SP19M6FFRQ-2M1R Syntax SSX 19pin M Syntax SSX 19pin F 6 France (NFC) 16amp 3p 230V IP44 SP19M6PCQ-2M1R Syntax SSX 19pin M - 6 powerCON 20amp 3p 230V IP2X grey SP19M6PCRQ-2M1R Syntax SSX 19pin M Syntax SSX 19pin F 6 powerCON 20amp 3p 230V IP2X grey SP19M6PTQ-2M1R Syntax SSX 19pin M - 6 powerCON True1 16amp 3p 230V IP65 SP19M6PTRQ-2M1R Syntax SSX 19pin M Syntax SSX 19pin F 6 powerCON True1 16amp 3p 230V IP65 -
S2W Syntax
2-Way Splitter BoxS2W Syntax
2-Way Splitter BoxFor Syntax® connectors SSX 19 pin
For Syntax® connectors SSX 19 pin
S2W with Syntax® SSX 19 pin connectors (Soca standard).
The S2W model with 19 pin connectors is available with either silver-plated or gold-plated contacts. Standard and reverse versions are available (standard version in the photo). The reverse version differs from the standard only for the position where the INPUT connector is assembled (on the reverse version, the INPUT is inline with one of the OUTPUTS). -
Note:
• for the version with safety lacing add “-L” at the end of the p/n.
• IP67 protection cap available on request.Silver - plated contacts Gold - plated contacts p/n S2WSXCS000S p/n S2WSXCG000S 1 IN 2 x OUT Standard p/n S2WSXCS000R p/n S2WSXCG000R 1 IN 2 x OUT Reverse
